Bag filter

您当前的位置:首页 > 产品中心 > Bag filter

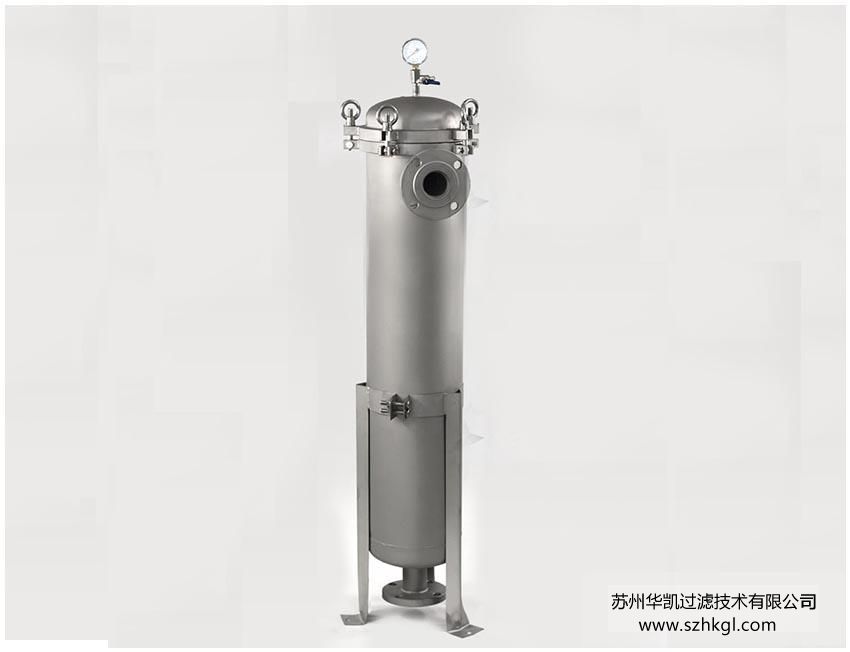

Anchorear type bag filter


Detailed introduction

\HOOP TYPE Anchorear type bag filter
Huakai HOOP TYPE filter adopts convenient portable HOOP structure, applicable to industrial without seal, the risk-free low voltage application, etc.
304 and 316 l materials manufacturing, high corrosion resistance, years of operation, can still maintain a stable performance.

Excellent performance
★ Standard bag interface, installation form of diversification
★ Quick opening eyebolt, convenient and quick opening and closing
★ Choose appropriate filter bag according to the flow
★ Can be adjusted according to the field for quick installation size
★ Health level polishing can meet customer demanding requirements

Technical parameters
referenceHG21637-91、GB150-2011Design, manufacture and acceptance
Diameter specifications:1-2”                                                                  Sealing gasket: silicone, nitrile butadiene rubber, four fluorine rubber
Design pressure:1.6MPa                                                                           Interface form: screw, clamp, flange
Design temperature:120℃                                                                                 Filtration precision:0.5um-800um
Surface treatment: inside and outside shell sand blasting or polishing                                                                        Filter bag type:1# 2#
The flange standard:HG GB SH HGJ JB ANSI JIS                                                              Outlet specifications:1/4”
Filter bag material: polyester, polypropylene, nylon, ptfe, glass fiber
The filter size
ModelA
(mm)
B
(mm)
C
(mm)
D
(mm)
F
(mm)
In/Out
SGD—1B500380700Ø219Ø1701"—4"
SGD—2B7007201050Ø219Ø1701"—4"
SGD—3B350190430Ø114Ø973/1"—2"
SGD—4B500340580Ø114Ø973/4"—2"
