Magnetic filter


Detailed introduction

\

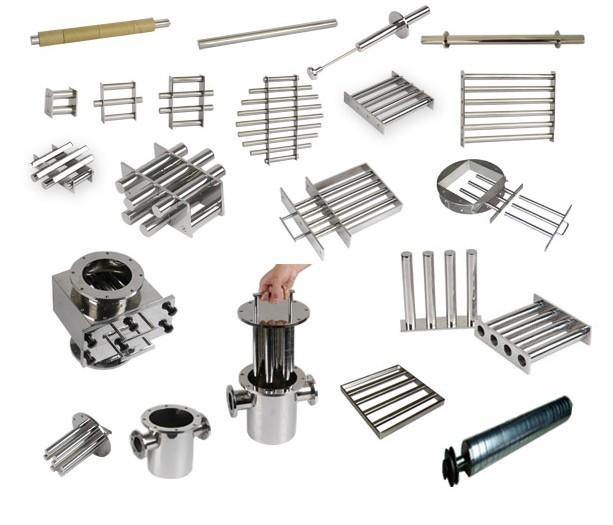

SXC magnetic filterBy using high coercive force strong magnetic material and block mesh, adsorption is ten times the general magnetic materials, with fluid flow in an instant impact or high flow velocity condition, the ability of the micron grade ferromagnetism pollutants, and can overcome down under the big impact of ferromagnetic contaminants to be adsorbed, avoiding the hydraulic components of card dead or friction wear, prolong the service life of hydraulic components and hydraulic system, enhance the reliability of the hydraulic system. Its center is a cylinder type permanent magnet, the magnet outer cover for nonmagnetic materials, cover around outside involves only a hoop, hoop are connected by a copper bar, keep a certain gap between each hoop. When the ferromagnetic impurities through a hoop for the hydraulic medium clearance, was adsorbed on the hoop, thus filtering effect. For ease of cleaning, the author divided into two and a half, when impurities to block a gap, can ring off to clean, and then fitted with repeated use.
Filter is
Magnetic filter can also be combined with other filter material of filter, used to back the print cartridge on the oil filter. The filter paper filter by internal and external tube and caught in the middle of the oil filter paper adhesive. Inside and outside the cylinder by the thin steel plate, plate punching many oil hole; Filter paper folding into a star, to increase the flow area. Filter in the middle of the tie rod is equipped with many of the circular and nylon spacer magnetic filter. Need to filter the hydraulic medium after magnetic filter first, then from the inside to the outside through a paper filter filter. When filter serious jam, filter oil inlet pressure, so the compression spring, filter down, the oil filter and direct links between the fuel tank, in order to protect the filter from being crushed.
Technical parameters

model
Model
SXC
  Ambient temperature
Ambient Temperature
CS:-30℃~+350℃
SS:-80℃~+480℃
specifications
Size
DN32~500 GB81~59
PN 0.6~5.0   FF  RF
  Nut bolt
Bolt/Nut
20# 304 304L 316 316L
Shell material
Body
A3 304 304L 316 316L H6The lining
Connection mode
Jonit Type
Flange connection butt welding screw thread connection
 Flange ButtWelding Threaded
Filtration precision
Pore size
10~300(Orders/in)
The flange standard
Flanges
HG GB SH HGJ JB ANSI  JIS
Sealing gasket
Diaphragm(P/V)
Nitrile butadiene rubber  teflon Metal gasket
NBR PTFE Metal Gasket
Design test standard
Manufacture Inspection
GB150-98      HGJ532-91
Filter material
Element
304  304L  316  316L
appearanceCoating
  CS:Paint      SS:No Paint

Product size

DNinDL
4011/2159460
502159460
803273574
1004377678
1506500916
20087001120
250108001220
300121000142
The characteristics of the magnetic filter
1, the table the maximum twelve thousand gauss, and use of permanent magnet;
2, remove 0.5 ~ 60 mu m we are invisible to the naked eye fine particulate impurities;
3, magnetic filter the smoothness of the surface can meet our requirement for food grade;
4, in addition to iron, good performance and adsorption ability is strong, convenient cleaning iron;
5, its material using high performance ndfeb, compared with the general magnetic materials, the magnetic force is higher than 5 ~ 20 times.

The product application
This company produces the filter has a compact structure, great capacity, small pressure loss, wide applicable range, convenient maintenance, price is low wait for an advantage, the main applicable materials are:
Weak corrosive material in chemical industry, petroleum chemical industry production, such as: water, oil, ammonia, hydrocarbons, etc.
Corrosive materials in the chemical production, such as: caustic soda, soda ash, thick dilute sulphuric acid, carbonic acid, hyaluronic acid, etc.
Refrigeration in the low temperature materials, such as: liquid methane, ammonia, oxygen, and various cooling agent.
In the production of food, pharmaceutical materials with health requirements, such as: beer, beverage, dairy products, syrup, etc.
