Detailed introduction
HK - Ti2 series filterFor the production of pure titanium material, corrosion resistance, this kind of filter is small in size, light weight, convenient use, large filtering area, low block rate, filtering speed, no pollution, thermal dilute stability and chemical stability is good. This filter can filter out most of the particles, so widely used in precision filtration and aseptic technique. Filter tube interior core can be equipped with 1, 3, 5, 7, 9, 11, 13, 15 core such as folding filter length has 10, 20, 30, 40 inches filter material of ptfe ethylene, polysulfone, nylon, polypropylene, acetate fiber. Filter aperture are: 0.1 um and 0.22 um, um, 1 3 um, 5 um, 10 um, etc Applicable and hydrophobic (gas) and hydrophilic liquid (for day) filter, can choose according to need.

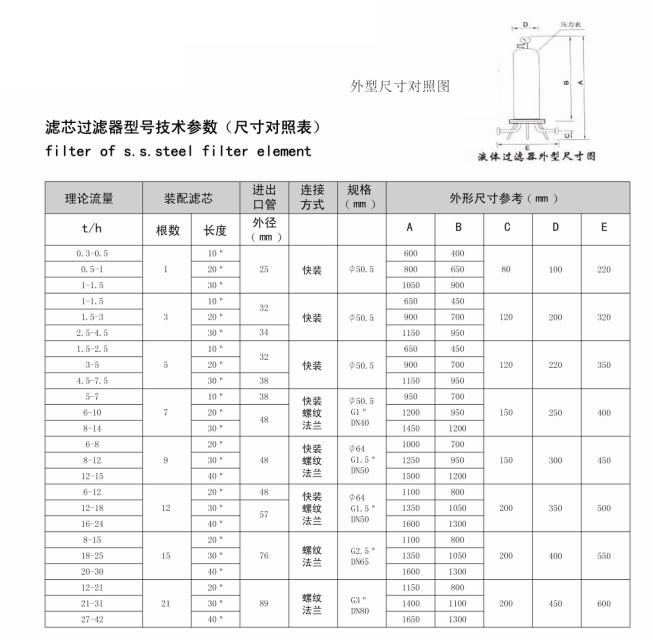

Technical parameters
Filter:0.05-20T/H
Filter USES pressure:0.1-0.6Mpa
Some filter specifications:1、3、5、7、9、11、13、15、
Filter using temperature:5-55°C
The characteristics and applications of the various filter: polytetrafluoroethylene (PTFE) membrane filter, poly adit membrane (HE) filter, polypropylene (PP) filter membrane, cellulose acetate membrane (CN - CA) filter, filtration precision from 0.1-60 um, length is 10, 20, 30 and 40 inches (250, 500, 750, 1000 mm), four kinds of the filter, pressure is 0.42 mpa, recoil. Interface means has plug-in (222, 226 two) peace mouth type two kinds.
Filter USES pressure:0.1-0.6Mpa
Some filter specifications:1、3、5、7、9、11、13、15、
Filter using temperature:5-55°C
The characteristics and applications of the various filter: polytetrafluoroethylene (PTFE) membrane filter, poly adit membrane (HE) filter, polypropylene (PP) filter membrane, cellulose acetate membrane (CN - CA) filter, filtration precision from 0.1-60 um, length is 10, 20, 30 and 40 inches (250, 500, 750, 1000 mm), four kinds of the filter, pressure is 0.42 mpa, recoil. Interface means has plug-in (222, 226 two) peace mouth type two kinds.
