Temporary filter


Detailed introduction

Function is introduced
  Temporary filter is also called the conical filter, belongs to the pipeline coarse filter series filter simplest form, installed on the pipeline to remove large solid impurity in the fluid, the machinery and equipment (including compressor, pump, etc.), the instrument can work normally and operation, to achieve stable process, the role of guaranteeing production safety. When the fluid is placed into a certain size of filter cartridge, the impurity is blocked, and clean the filtrate by filter outlet, when need to wash, just remove the removable cartridge, after processing to reload the can, therefore, is very convenient in operation and maintenance.

Temporary filter characteristics

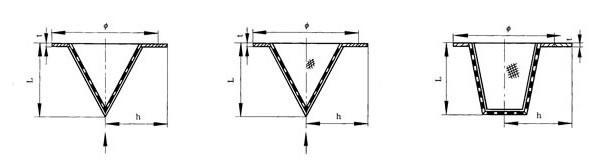

  It is mainly used for driving equipment of pipeline before use, installation between two flanges in the pipeline, to remove impurities in pipeline; Equipment is simple, reliable, applicable range. Temporary filter points pointed bottom cone type filter peace at the end of the cone type filter two kinds, used in pipeline filter out impurities.

\
Technical parameters
specifications:DN32~DN500                  iltration precision:2-200um         Manufacture, inspection and acceptance standard: implement SH/T3411 standards
Working temperature: stainless steel-80℃-480℃       Pressure of work:0.25~10MPa      Shell material:SUS304、SUS304L、SUS316、SUS316L
Carbon steel-40℃-380℃         Connection mode: flange to clip        The standard of the flange:GB、HG、SH、HGJ、JB、ANSL、JISSuch as the standard

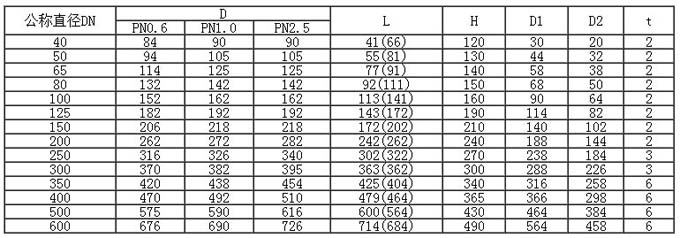

Size
   \
