Detailed introduction

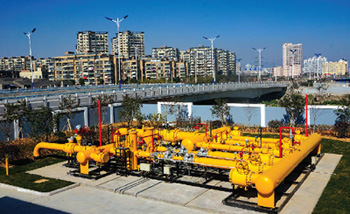

Huakai HK - SNG seriesGas filterWidely used in metallurgy, chemical industry, petroleum, paper making, medicine, food, mining, power, city, family, and other areas of the gas. Gas transport medium filter is indispensable to a device, usually installed in a reducing valve, relief valve, positioning the inlet valve or other equipment, used to eliminate the impurity in the medium, in order to protect the valve and the normal use of equipment, reduce maintenance costs.
Technical parameters
Design criteria: GB150 steel pressure vessel
Working temperature:-40-80℃
CAL:DN25-DN300
Applicable medium: natural gas, the artificial coal gas and liquefied petroleum gas (LPG), all kinds of corrosive gas
Filter effusion cavity volume: 12% of the total volume
Flange standard: standard or ANSI HG20592; B16.5
Connection mode: according to the matching piping design

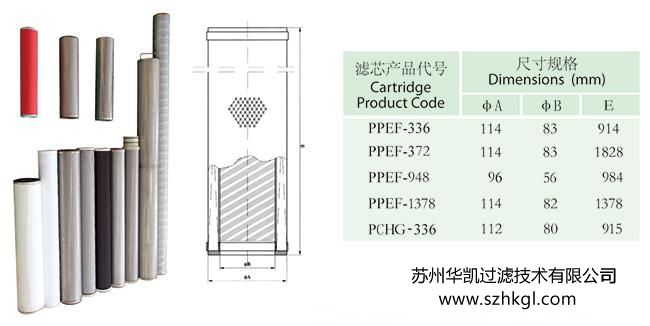

The filter material
Shell:20、16Mn、Q345R、ASTM A106、ASTM A516
Fran:16MNorASTM A105、ASTM A350

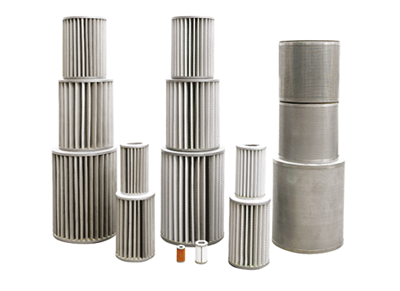

Filter material
Polyester fiber, stainless steel wire mesh
Filtration precision:0.3、1、2、5、10、20、50、100um
Filtration efficiency: 99.99%
The filter optional accessories
Drain valve
Type pressure gauge and the needle valve
Pressure transmitter
Differential pressure meter and valve
Differential pressure transmitter
Gas filter series
RF series gas filter
■ Suitable for filtering gas, the artificial coal gas and liquefied petroleum gas And other non-corrosive gases
■ Filter material made of stainless steel wire mesh and polyester fiber
■ The highest precision 0.3 um
■ Filtration efficiency can reach 99.99%
F series of gas filter
■ Suitable for filtering gas, artificial coal gas, liquefied gas and other non-corrosive gases
■ Material of the filter material for polyester, glass fiber, synthetic paper
■ The highest precision 0.3 um
■ Filtration efficiency can reach 99.99%
Technical parameters
Design criteria: GB150 steel pressure vessel
Working temperature:-40-80℃
CAL:DN25-DN300
Applicable medium: natural gas, the artificial coal gas and liquefied petroleum gas (LPG), all kinds of corrosive gas
Filter effusion cavity volume: 12% of the total volume
Flange standard: standard or ANSI HG20592; B16.5
Connection mode: according to the matching piping design
The filter material
Shell:20、16Mn、Q345R、ASTM A106、ASTM A516
Fran:16MNorASTM A105、ASTM A350
Filter material
Polyester fiber, stainless steel wire mesh
Filtration precision:0.3、1、2、5、10、20、50、100um
Filtration efficiency: 99.99%
The filter optional accessories
Drain valve
Type pressure gauge and the needle valve
Pressure transmitter
Differential pressure meter and valve
Differential pressure transmitter
Gas filter series
RF series gas filter
■ Suitable for filtering gas, the artificial coal gas and liquefied petroleum gas And other non-corrosive gases
■ Filter material made of stainless steel wire mesh and polyester fiber
■ The highest precision 0.3 um
■ Filtration efficiency can reach 99.99%
F series of gas filter
■ Suitable for filtering gas, artificial coal gas, liquefied gas and other non-corrosive gases
■ Material of the filter material for polyester, glass fiber, synthetic paper
■ The highest precision 0.3 um
■ Filtration efficiency can reach 99.99%
